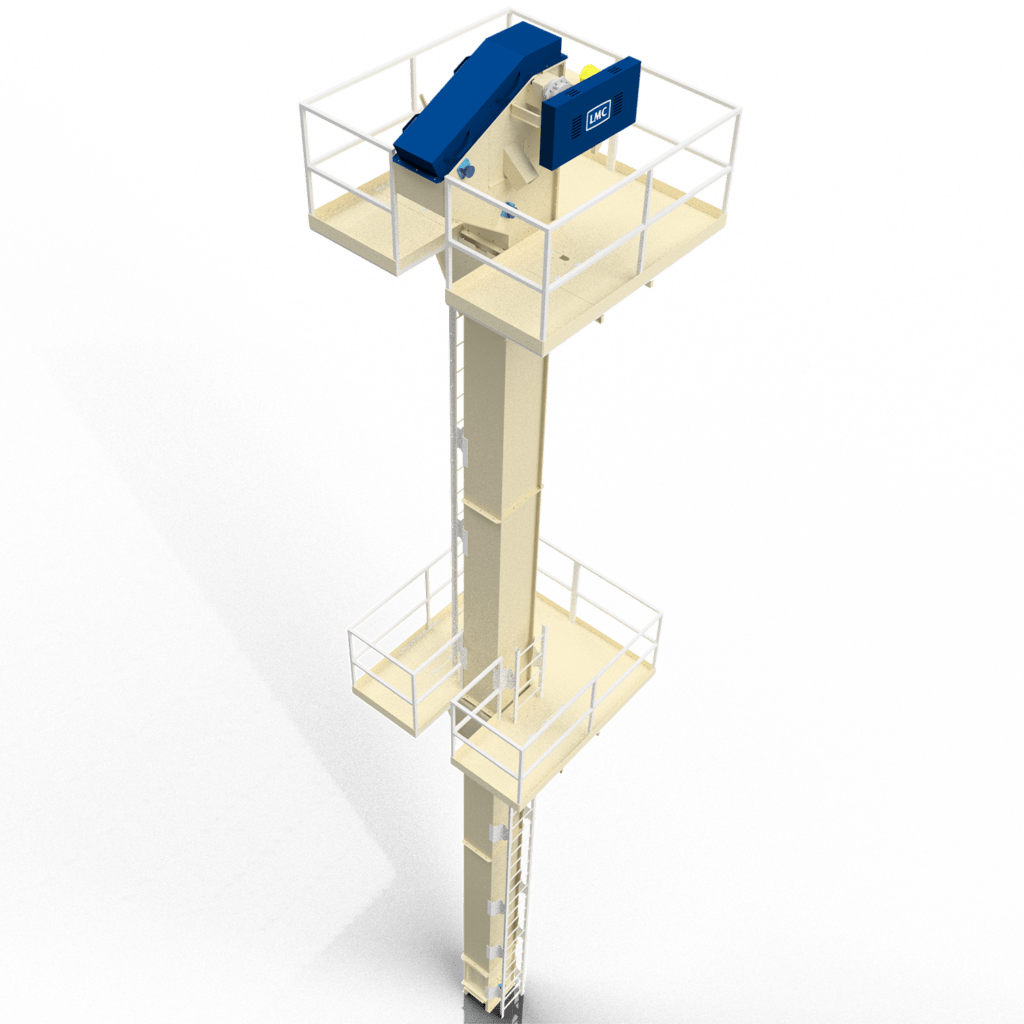

Easy Dump Elevator

LMC Elevators are typical of the innovative nature valued by LMC. By taking our proven, reliable design and upgrading its performance, LMC has created the new standard for gentle-handling elevators. With these elevators LMC strives to provide our customers with a high-performance piece of equipment with an economical price tag.

  • Gentle discharge of product
  • Chain and bucket design
  • Boot clean-out doors
  • Bolted legging (saves on freight)
  • Stainless steel contacts available
  • High capacity units
  • Shaft-mounted gear reducer with backstop
  • Rest and service platforms available
  • Manual and pneumatic switch valve options
Easy Dump Elevator

  • Discharge Spout Options

    Reversible Discharge Spout
    By simply removing the bolts from the spout and cover plate, the discharge direction can be altered without breaking the chain assembly.

    Bidirectional Discharge Spout
    Products can be simultaneously discharged from both sides of the elevator should separate bins or machines need to be fed at the same time.

    Switch Valve Discharge Spout
    Products can be discharged from either side by a manual, pneumatic, or electrically actuated switch valve.

  • Ladders, Fall Arrest System, Rest and Service Platforms

    OSHA compliant ladders, fall arrest system, and rest and serve platforms area all optional features than can be included in your specific design.

  • Bolted Assembly

    The legging can be shipped broken down, thereby reducing freight costs.

  • Positive Clean Out Boot

    The boot is tapered to a drawer action assembly which when opened, completely empties the boot. Built in boot clearance above the floor enables quicker, more effective clean outs and maintains proper sanitation.

Operating the Easy Dump Elevator

The principles of operation for an LMC Easy Dump Elevator are very simple, straightforward and effective. From a spouting system, the product is transferred into the buckets. The buckets travel up the legging until they are pulled around the first set of sprockets as shown in the illustration. The buckets are gently tilted and the product dispenses into the discharge hopper. From this hopper, the product feeds through a spout to your designated destination. The buckets continue in this cycle and provide a continuous, smooth flow of product with very little damage to the product.

Learn More About LMC Easy Dump Elevators

DOWNLOAD BROCHURE
MODEL SPECIFICATIONS

Easy Dump Elevator
Model Specifications

Model Bucket Size Cubic Feet per Hour Capacity (35lbs/cubic ft) 85% fill Capacity (48lbs/cubic ft) 85% fill
3508
5″ x 7″
458
16,030 lbs/hr
38,400 lbs/hr
3518
6″ x 12″
1,028
35,980 lbs/hr
49,344 lbs/hr
3530
6″ x 18″
1,714
59,990 lbs/hr
82,272 lbs/hr
3540
6″ x 24″”
2,285
79,795 lbs/hr
109,680 lbs/hr
3560
10″ x 24″
3,428
119,980 lbs/hr
164,544 lbs/hr
35120
15″ x 25″
6,856
239,960 lbs/hr
329,088 lbs/hr
